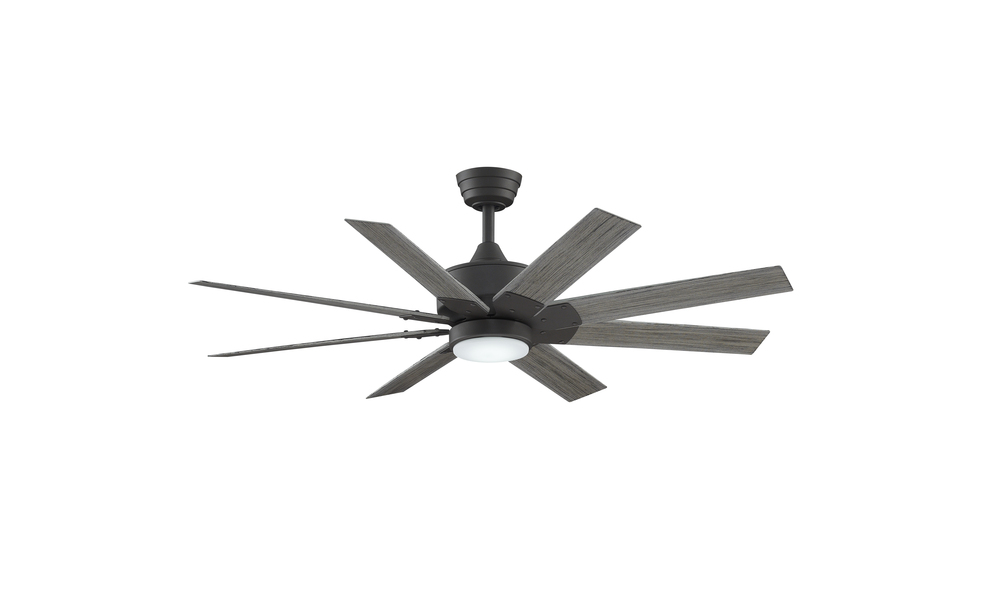

Levon Custom DC Motor - GR (K0X7) by Fanimation MAD7912BGR

Image may not reflect selected features

No Image
Available

BASE PRICE:

520

/ / 1

($520.98 / 1)

WAS

Call for Price

Item #:

K0X7

Dimensions:

Height: 15.58"

Width: 52.00"

Length: 52.00"

Ceiling To Bottom:

15.58 , 16.27

Availability:

Manufacturer has 111 items available.

Energy Information at High Speed

Airflow:

8244 Cubic Feet per Minute

Electricity Rate:

31 Watts (excluded lights)

Airflow Efficiency:

270 Cubic Feet Per Minute Per Watt

Description

Details

Downloads

The Levon Custom by Fanimation is not only stylish, but also economically smart and environmentally friendly. The Levon Custom is in an elite class of fans that have earned the Energy Star rating by meeting strict energy efficiency guidelines. In essence, The Levon Custom will add contemporary sophistication to your home while conserving your financial resources and the environment. The Levon Customs eight blades can be operated on three forward and reverse speeds to create just the right breeze for any temperature. The Levon Custom is available in multiple damp rated finishes and can accommodate a ceiling slope up to 42 degrees. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Vendor Item #:

MAD7912BGR

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Gray , Miscellaneous

Style:

Traditional

Option:

Energy Star , Damp Rated

Voltage:

10-99

Number of Blades:

8+ Blades

Location Rating:

Damp Rated

Category:

Fan-Multi

Finish:

Matte Greige

Option:

Damp

Family:

Levon Custom

Voltage:

120 V

Additional Info:

3 speed DC motor with reverse switch, fan speed, light controls, sleep timer,home away, fresh air an , 7880 CFM on High , Compatible with most Smart home devices (required controls sold separately) , ENERGY STAR Most Efficient 2020 , Set of (8) blades with Damp Rated optional finishes included; optional 18 watt LED light kit (sold s , TR205D handheld remote with CR2032 batteries included

Air Flow CFM:

8244

Air Flow Efficiency:

270

Amperage:

0.4

Blade Pitch:

Canopy:

5.75 Dia x 2.57 H

Diameter:

9.06

Down Rod Included:

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

52, 64, 72

Light Kit Included:

Max Length:

Max Width:

Motor Fan Speed:

Motor RPM:

Motor Size:

165nm

Motor Type:

Remote Control Included:

TR205D

Ship Carton Height:

11.3

Ship Carton Length:

Ship Carton Width:

12.05

Ship Weight:

21.94

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

19.67

Airflow Efficiency Low:

784

Airflow Efficiency Medium:

445

Avg Airflow Efficiency:

291

Avg CFM Energy:

6177

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Canopy Diameter:

5.75 Dia

Canopy Height:

2.57 H

Cap Included:

Carton Cubic Feet:

1.58

Cartons Per Unit:

Case Height:

11.3

Case Length:

Case Quantity:

Case Weight Pounds:

21.94

Case Width:

12.05

CEC Uploaded:

Yes

Ceiling To Blade Edge:

14.4

Ceiling To Bottom:

15.58 , 16.27

CFM Low:

4090

CFM Medium:

6158

Compatible Accessories:

CCK8002GRW, DR1-12GR, DR1-18GR, DR1-24GR, DR1-36GR, DR1-48GR, DR1-60GR, DR1-72GR, DR1-CPGR, SCB1-52

Compatible Blades:

B7912N, B7912WA, B7912WP, B7913BN, B7913CYWA, B7914BN, B7914CYWA, BPW7912BL, BPW7912BN, BPW7912CY, BPW7912DWA, BPW7912MW, BPW7912N, BPW7912WE, BPW7912WP, BPW7912WW, BPW7913BL, BPW7913BN, BPW7913CY , BPW7913DWA, BPW7913MW, BPW7913N, BPW7913WE, BPW7913WP, BPW7913WW, BPW7914BL, BPW7914BN, BPW7914CY, BPW7914DWA, BPW7914MW, BPW7914N, BPW7914WE, BPW7914WP, BPW7914WW

Compatible Light Kits:

LK7912BGR

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.4

Current Draw Low:

0.08

Current Draw Medium:

0.21

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

9.06

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

RPM Low (II):

RPM Medium (IV):

RPM Medium IV:

124

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Additional Information:

3 Speed Dc Motor With Reverse Switch, Fan Speed, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit
8244 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Energy Star Most Efficient 2022
Set Of (8) Damp Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
Tr305 Handheld Remote With 23a Battery Included
