TriAire Custom Motor - SLW (K0XF) by Fanimation MAD8514SLW

Image may not reflect selected features

No Image
Available

BASE PRICE:

429

/ / 1

($429.98 / 1)

WAS

Call for Price

Item #:

K0XF

Dimensions:

Height: 12.42"

Width: 44.00"

Length: 44.00"

Ceiling To Bottom:

12.42 , 14.62

Availability:

Manufacturer availability unavailable.

Energy Information at High Speed

Airflow:

6765 Cubic Feet per Minute

Electricity Rate:

29 Watts (excluded lights)

Airflow Efficiency:

230 Cubic Feet Per Minute Per Watt

Description

Details

Downloads

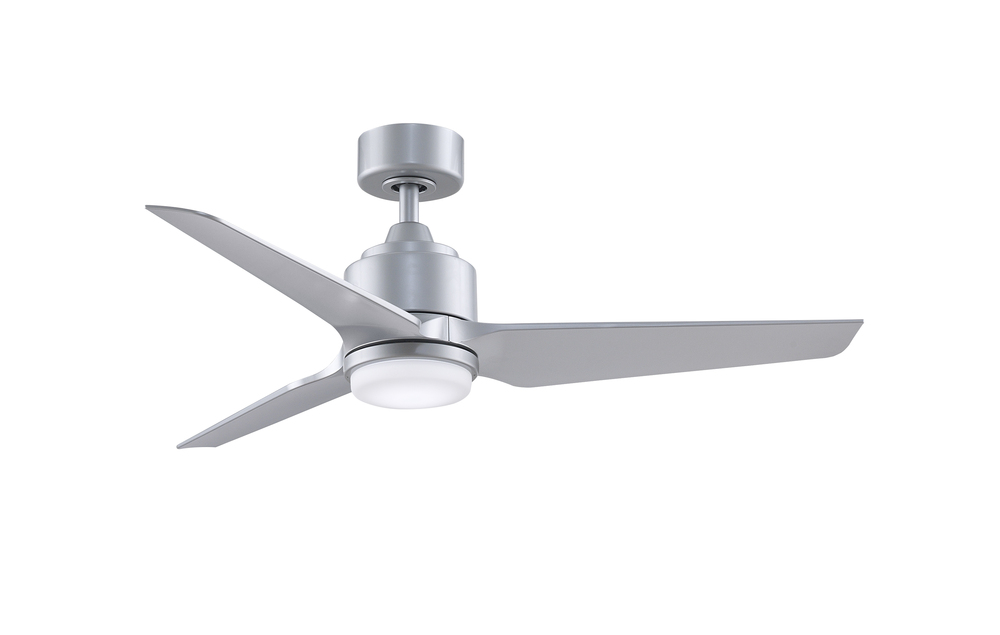

The TriAire Custom by Fanimation fits any style in any location. With eight different blade sweeps in multiple finishes, you can create the TriAire Custom that fits your space. This wet rated ceiling fan has a 31 speed DC motor. LED with CCT Select Light kit, blades and motor sold separately. *Wet rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Vendor Item #:

MAD8514SLW

Category:

Fans

Subcategory:

Fan Motor Without Blades

Finish:

Silver

Style:

Traditional

Option:

Energy Star , Wet Rated

Voltage:

10-99

Number of Blades:

3 Blades

Location Rating:

Wet Rated

Wattage:

Category:

Fan-Multi

Finish:

Silver

Option:

Wet

Family:

TriAire Custom

Voltage:

120 V

Additional Info:

5103 CFM on High , Compatible with most Smart home devices (required controls sold separately) , DC motor with reverse switch, variable speeds, light controls, sleep timer, home away, fresh air and , ENERGY STAR Most Efficient 2020 , Set of 3 Wet Rated blades with multiple finish options and 18 watt LED light kit (sold separately) , TR205D handheld remote with CR2032 batteries included

Air Flow CFM:

6765

Air Flow Efficiency:

230

Amperage:

0.42

Blade Pitch:

Canopy:

5.75 Dia x 2.57 H

Diameter:

7.09

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Length:

44, 48, 52, 56, 60

Light Kit Included:

Max Length:

Max Width:

Motor Fan Speed:

Motor RPM:

161

Motor Size:

158 X 22

Motor Type:

Remote Control Included:

TR205D

Ship Carton Height:

8.35

Ship Carton Length:

15.94

Ship Carton Width:

8.86

Ship Weight:

13.6

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

12.19

Airflow Efficiency Low:

357

Airflow Efficiency Medium:

503

Avg Airflow Efficiency:

247

Avg CFM Energy:

4860

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Canopy Diameter:

5.75 Dia

Canopy Height:

2.57 H

Cap Included:

Yes

Carton Cubic Feet:

0.68

Cartons Per Unit:

Case Height:

8.35

Case Length:

15.94

Case Quantity:

Case Weight Pounds:

13.6

Case Width:

8.86

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.92

Ceiling To Bottom:

12.42 , 14.62

Ceiling to Bottom with LK:

19.3

CFM Low:

821

CFM Medium:

4222

Compatible Accessories:

CCK8002SLW, DR1-CPSL, DR1SS-12SLW, DR1SS-18SLW, DR1SS-24SLW, DR1SS-36SLW, DR1SS-48SLW, DR1SS-60SLW, DR1SS-72SLW, SCB1-52

Compatible Blades:

BPW8514-44BLW, BPW8514-44DWAW, BPW8514-44MWW, BPW8514-44SLW, BPW8514-44WEW, BPW8514-48BLW, BPW8514-48DWAW, BPW8514-48MWW, BPW8514-48SLW, BPW8514-48WEW, BPW8514-52BLW, BPW8514-52DWAW, BPW8514-52MWW , BPW8514-52SLW, BPW8514-52WEW, BPW8514-56BLW, BPW8514-56DWAW, BPW8514-56MWW, BPW8514-56SLW, BPW8514-56WEW, BPW8514-60BLW, BPW8514-60DWAW, BPW8514-60MWW, BPW8514-60SLW, BPW8514-60WEW

Compatible Light Kits:

LK8514SLW

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.42

Current Draw Low:

0.04

Current Draw Medium:

0.13

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

7.09

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

161

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Wet Rated:

Yes

Manufactured By:

Fanimation

Additional Information:

5103 Cfm On High
Compatible With Most Smart Home Devices (required Controls Sold Separately)
Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
Energy Star Most Efficient 2022
Set Of (3) Wet Rated Blades With Multiple Finish Options Available And 18 Watt Led Cct Select Light Kit Available (sold Separately)
Tr305 Handheld Remote With 23a Battery Included

Click Here to View Spec Sheet Details

Click Here to View Owners Manual
