Wrap Custom Motor - BS (K3UN) by Fanimation MAD8531BS

Image may not reflect selected features

No Image
Available

BASE PRICE:

449

/ / 1

($449.98 / 1)

WAS

Call for Price

Item #:

K3UN

Dimensions:

Height: 15.96"

Width: 64.00"

Length: 64.00"

Availability:

Manufacturer has 246 items available.

Description

Details

Downloads

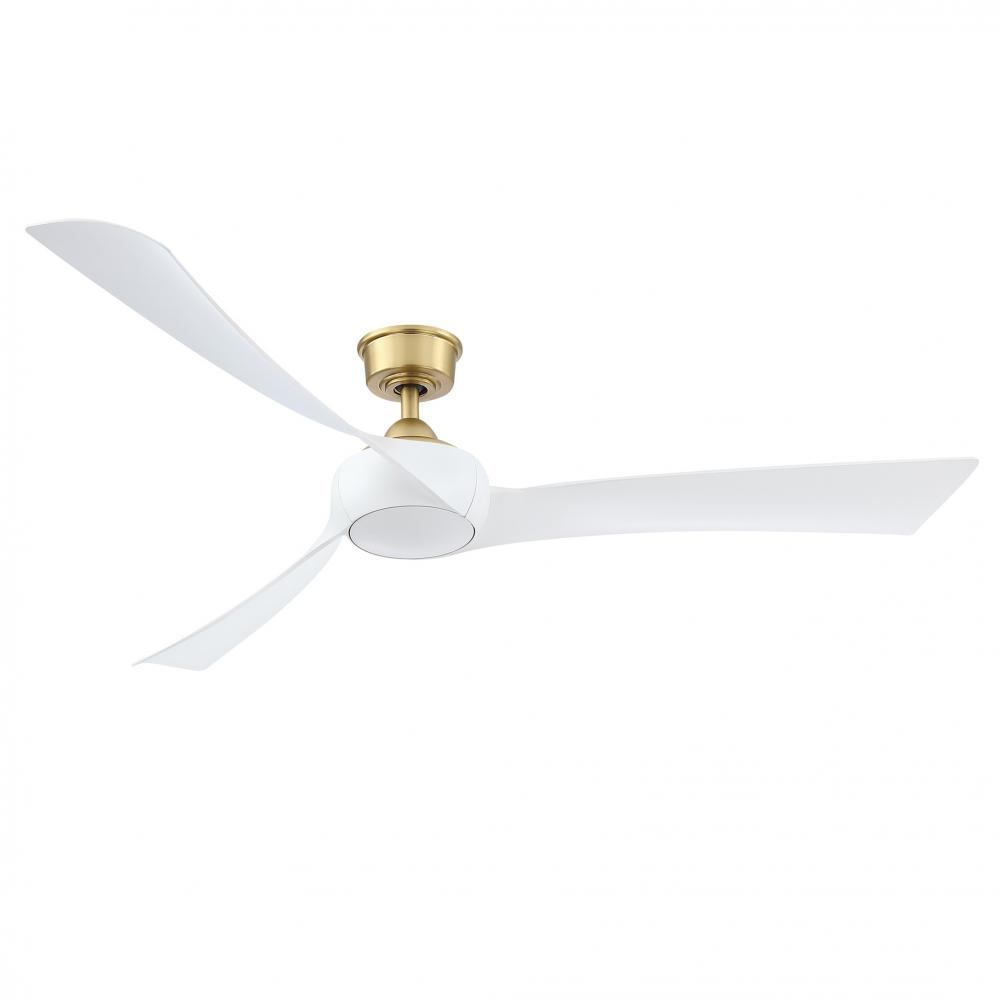

Wrap yourself in style with this sophisticated ceiling fan from Fanimation. With many motor and blade finish combinations available, Wrap Custom is a versatile ceiling fan. LED and CCT Select Light kit, blades and motor sold separately. *Damp Rated for indoor or outdoor use *Can be controlled using the Fanimation Bluetooth fanSync app *Reversible airflow for multi-season use

Vendor Item #:

MAD8531BS

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black , Brass

Option:

Energy Star , Damp Rated

Voltage:

10-99

Number of Blades:

3 Blades

Category:

Fan-Multi

Finish:

Brushed Satin Brass

Option:

Damp Rated , Energy Star

Family:

Wrap Custom

Voltage:

120V

Air Flow CFM:

11206

Air Flow Efficiency:

366

Blade Pitch:

Varied

Canopy:

6.14 Dia, 2.55 H

Harmonized Codes:

8414.51.3000

Length:

64, 72, 84

Max Width:

Motor Size:

153 x 25

Motor Type:

Ship Carton Height:

7.6

Ship Carton Length:

16.34

Ship Carton Width:

8.86

Ship Weight:

16.1

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

13.3

Airflow Efficiency Low:

1172

Airflow Efficiency Medium:

827

Avg Airflow Efficiency:

420

Avg CFM Energy:

8762

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Canopy Diameter:

6.14

Canopy Height:

2.55

Cap Included:

Yes

Case Quantity:

CEC Uploaded:

Yes

Ceiling To Blade Edge:

15.33

Ceiling to Bottom No LK:

15.96

Ceiling to Bottom with LK:

16.55

CFM Low:

3516

CFM Medium:

7859

Compatible Accessories:

DR1-12BS, DR1-18BS, DR1-24BS, DR1-36BS, DR1-48BS, DR1-60BS, DR1-72BS, DR1-CPBS, SCB1-52

Compatible Blades:

BPW8531-64BL, BPW8531-64BN, BPW8531-64DWA, BPW8531-64N, BPW8531-64WE, BPW8531-64WW, BPW8531-72BL, BPW8531-72BN, BPW8531-72DWA, BPW8531-72N, BPW8531-72WE, BPW8531-72WW, BPW8531-84BL, BPW8531-84BN, BPW8531-84DWA, BPW8531-84N, BPW8531-84WE, BPW8531-84WW

Compatible Light Kits:

LK8530BS

Compatible Wall Controls:

TW306

Country of Origin:

China

Current Draw High:

0.43

Current Draw Low:

0.05

Current Draw Medium:

0.15

Damp Rated:

Yes

DOE Classification:

LSSD

DOEFTC Uploaded:

Yes

Downrod Length:

Exempt from DOE Procedure:

Fan Energy Star:

Yes

Housing Diameter:

8.88

Included Control:

TR305

Included Control Type:

Handheld

Leadwire:

Max Ceiling Slope:

Max Watt:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Control

RPM High (VI):

RPM Low (II):

RPM Medium (IV):

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60HZ

Watts Low:

Watts Medium:

Manufactured By:

Fanimation

Additional Information:

11206 CFM on High
Compatible with smart home devices using the Wi-Fi fanSync app
Dc Motor With Reverse Switch, Variable Speeds, Light Controls, Sleep Timer, Home Away, Fresh Air And Safe Exit Features
Energy Star Most Efficient 2022
Set of (3) Damp Rated blades with multiple finish options available and 18 watt LED CCT Select light kit available (sold separately). Compatible with Wrap Custom blade sets with sweeps between 64 and 84 inches
Tr305 Handheld Remote With 23a Battery Included

Click Here to View Spec Sheet Details

Click Here to View Manual Sheet Details
