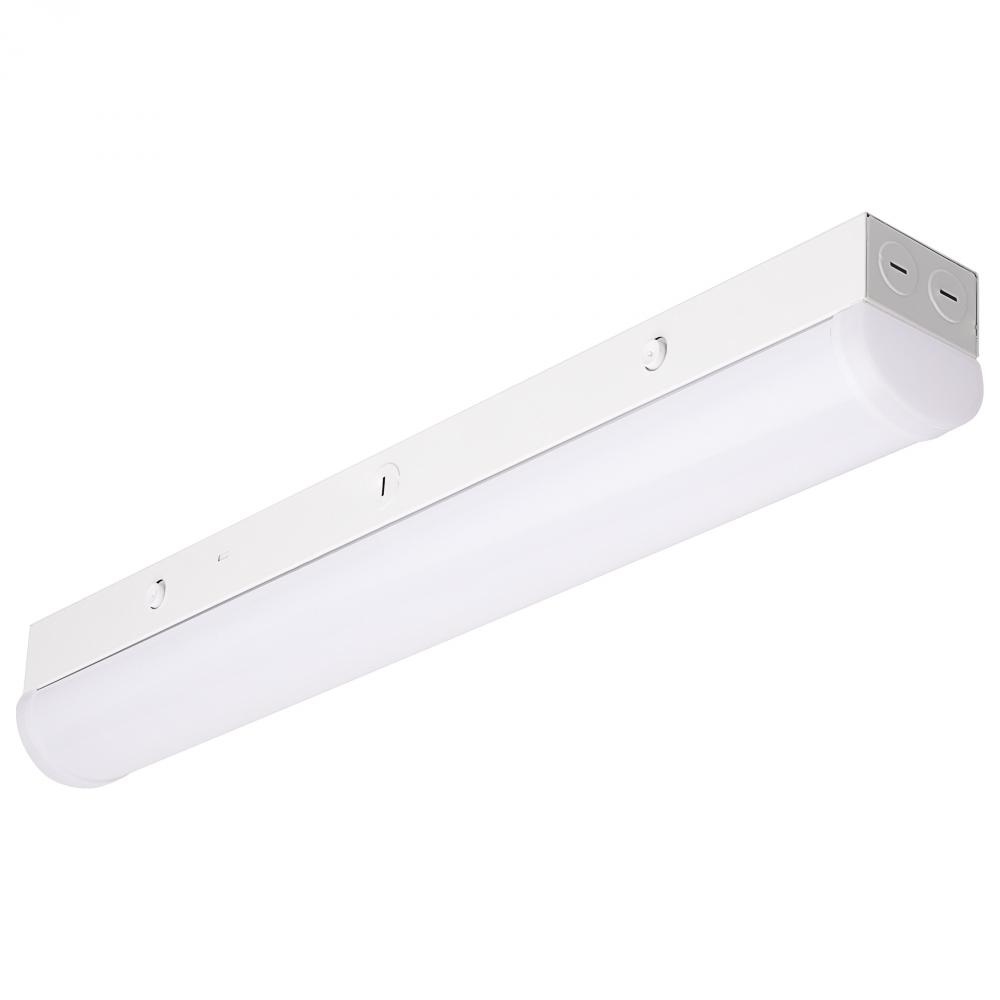

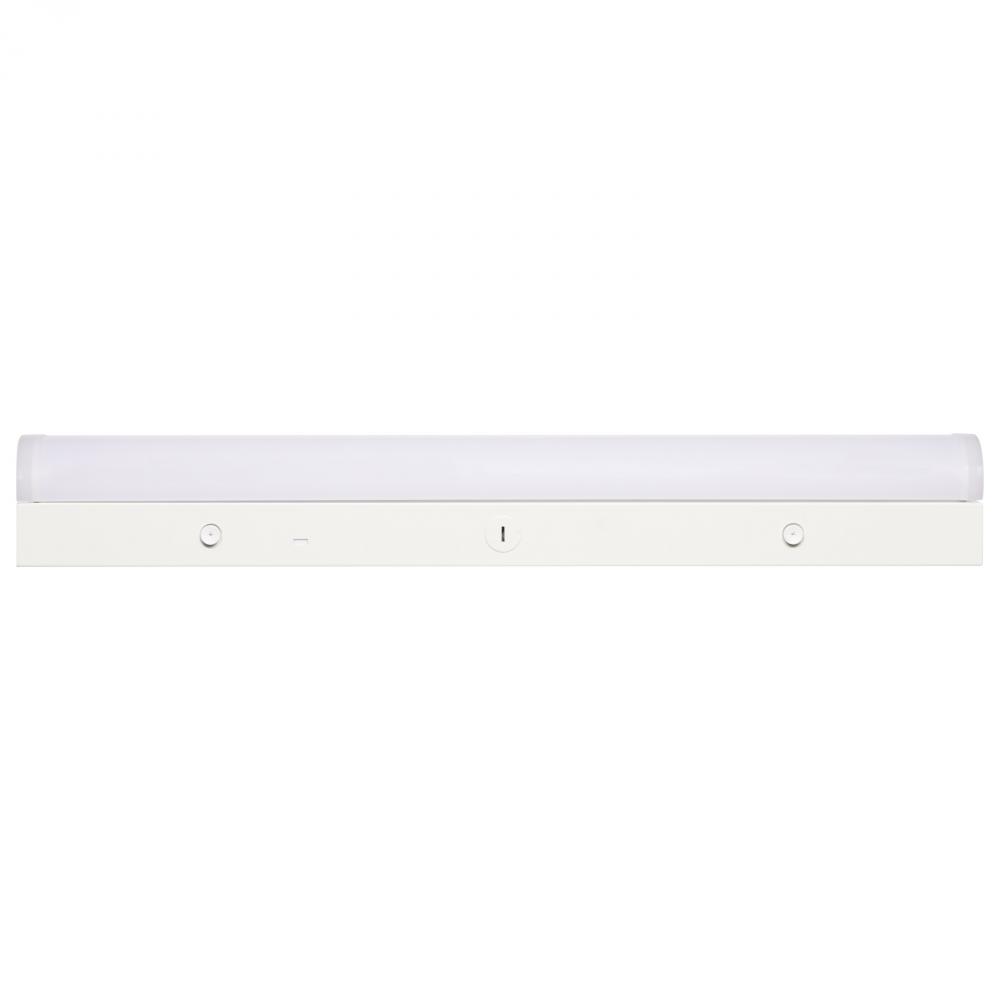

2 ft. LED; 20 Watt Linear Strip Light; CCT Selectable; White Finish; 120-277 Volt; Microwave Sensor (A932X) by Nuvo 65/1700

Image may not reflect selected features

No Image
Available

2 ft. LED; 20 Watt Linear Strip Light; CCT Selectable; White Finish; 120-277 Volt; Microwave Sensor

BASE PRICE:

102

/ / 1

($102.00 / 1)

WAS

Call for Price

Item #:

A932X

Dimensions:

Height: 3.27"

Width: 2.95"

Finish:

White

Availability:

Manufacturer has 320 items available.

Recommended Items

Description

Details

Downloads

2 ft. LED; 20 Watt Linear Strip Light; CCT Selectable; White Finish; 120-277 Volt; Microwave Sensor

Vendor Item #:

65/1700

Category:

Undercabinet

Subcategory:

LED Undercabinet Lights

Option:

LED , Prop 65

Lumens:

2601-3000

Kelvin:

5501-6000

Category:

Linear Strip

Sub Category:

Strip Fixture

Style:

Utility

Additional Info:

Other DLC Listing: S-Q129W0, Standard, Direct Linear Ambient Luminaires.

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Neutral White to Daylight

Dimmable:

Yes-Dimmable

Each Height:

5.31

Each Length:

26.1

Each Width:

5.2

Length:

Lumens:

2735L-2830L

Tariff Code:

9405.11.6010

Warranty:

5 Year Limited - Fixtures

Amps:

0.167-0.072A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

B_U_G_Rating:

B1-U3-G1

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Connection:

Hardwire

Country Of Origin:

Vietnam

CRI:

Dimmable Down To:

100 to 10 percent

Dimmable Function:

0-10V Dimming Only

DLC Classification:

Premium; Standard

DLC Primary Use:

Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires

Each Cube:

0.4171

Each Quantity:

Efficacy:

136.75/139.13/141.50 LPW

FCC Compliant:

Yes

Feature 1:

CCT Selectable

Feature 2:

Flicker Free Driver

Feature 3:

0-10V Dimmable

Feature 4:

Multiple Mounting Options

Feature 5:

DLC Premium

Feature 6:

Integrated Microwave Sensor

Feature 7:

Ultra Slim Design

Finish Family:

White

Flicker Free:

Yes

Has Driver:

Yes

HID Equiv:

100W-150W

Incandescent Equivalent:

150W-175W

Indoor Outdoor:

Indoor

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Lens Finish:

White

Lens Material:

Polycarbonate (PC)

Long Description:

The SATCO|NUVO 65-1700 LED 2-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K - the user can tailor the lighting to their specific needs and prefe

Material:

Steel

Mounting Diameter:

4.75

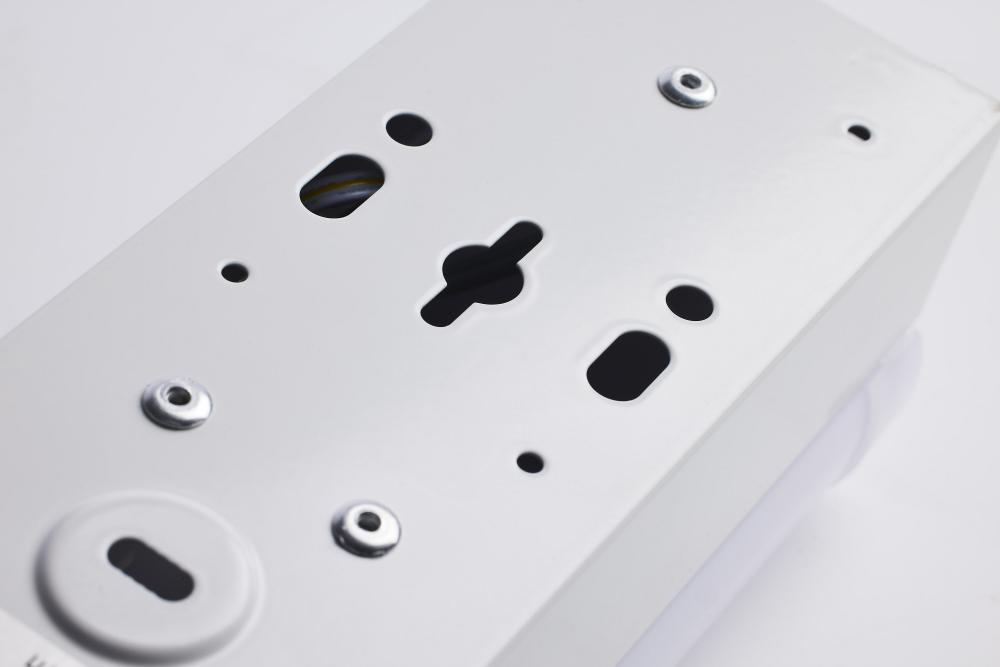

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +60C (+140F)

Pack Type:

Box

Photocell:

Bi-Level Microwave Sensor

Power Factor:

0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod

Safety Listing:

cULus - Listed

SDS class:

LED_Fixture

Sensor Type:

Microwave

Short Description:

2' LINEAR STRIP W/SENSOR

Sloped Ceiling Compatible:

Yes

Temperature (CCT):

3500K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

13.61%

Wattage Selectable:

Weight Lb.:

1.78

Manufactured By:

Nuvo
