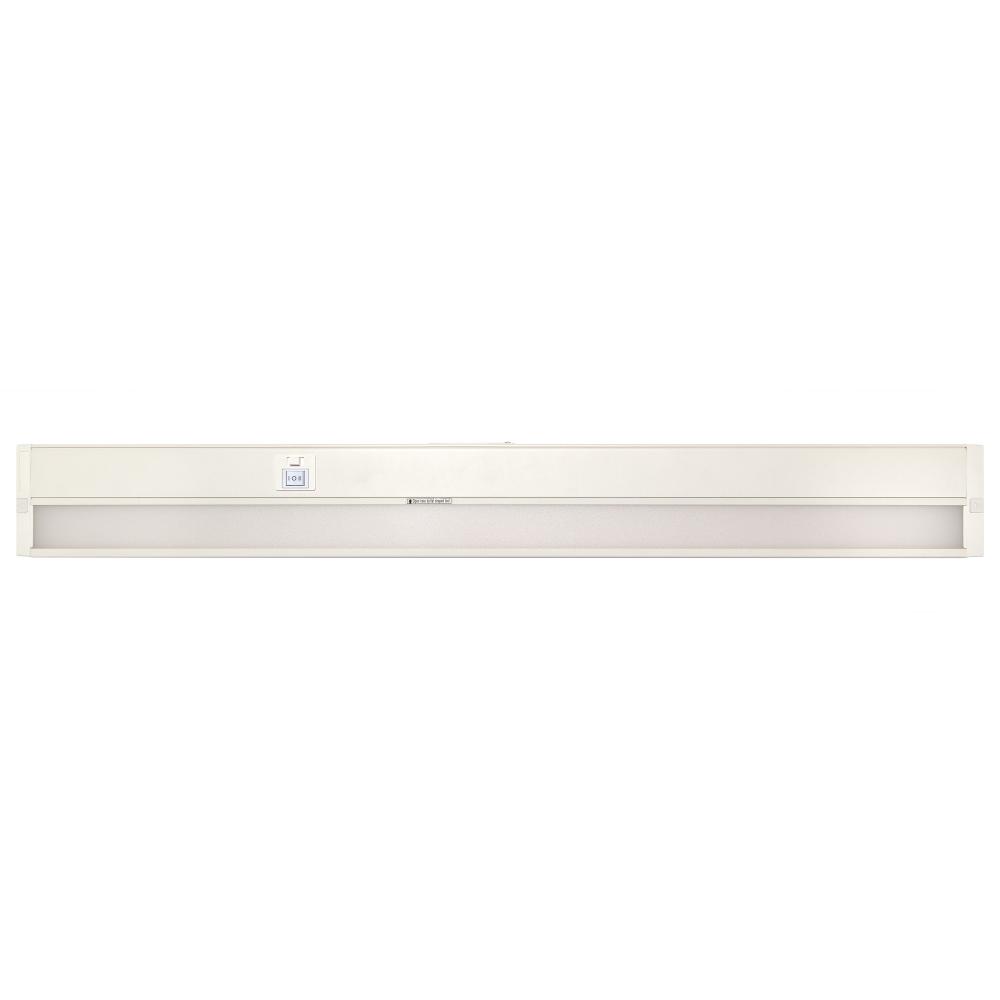

20 Watt; 34 Inch LED White Under Cabinet Light; CCT Selectable (A2YTZ) by Nuvo 63/505

Image may not reflect selected features

No Image
Available

20 Watt; 34 Inch LED White Under Cabinet Light; CCT Selectable

BASE PRICE:

/ / 1

($72.95 / 1)

WAS

Call for Price

Item #:

A2YTZ

Dimensions:

Height: 1.00"

Width: 3.50"

Finish:

White

Availability:

Manufacturer may be Out Of Stock.

Recommended Items

Description

Details

Downloads

20 Watt; 34 Inch LED White Under Cabinet Light; CCT Selectable

Vendor Item #:

63/505

Category:

Undercabinet

Subcategory:

Other Undercabinet

Finish:

White

Option:

LED , Prop 65

Lumens:

1101-1600

Kelvin:

4001-4500

Category:

Under Cabinet & Cove

Sub Category:

Linear Strip

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

1.38

Each Length:

35.24

Each Width:

3.74

Length:

Lumens:

1500L

Tariff Code:

9405.42.6000

Warranty:

5 Year Limited - Fixtures

Amps:

0.167A

ANSI Base:

Integrated

Beam Angle:

105

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Each Cube:

0.1053

Each Quantity:

Efficacy:

75.00 LPW

FCC Compliant:

Yes

Feature 1:

Counter Quick's high-quality design illuminates counter space with a clean, bright light that showcases natural and true colors

Feature 2:

Selectable CCT technology allows you to switch between 3000K, 4000K, and 5000K color temperatures; 90 CRI

Feature 3:

Two mounting options to best fit your installation: Use the integrated mounting screws or standard keyhole mounting

Feature 4:

Three wiring configurations for ease of installation: Direct Wire to Fixture, Direct Wire to Junction Box, or Plug into an outlet with Power Cord (sold separately)

Feature 5:

Various knockouts along the back and sides provide more access points for convenient wiring; An expanded internal compartment leaves room to work and stores the connected wire with plenty of room to close the fixture

Feature 6:

Powder Coated Aluminum body provides a high-quality, durable design that includes a textured lens for premium light distribution

Feature 7:

Low profile, slim design. Measures 34 in. Length x 3.5 in. Width x 1 in. Height

Finish Family:

White

Fixture shape:

Rectangle

Has Driver:

Yes

Impact Rating (IK):

IK08

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Lens Finish:

Frosted White

Lens Material:

Polycarbonate (PC)

Long Description:

No matter how you hang it, install it, connect it, link it, wire it, or light it - the 63-505 34 inch Counter QUICK LED under cabinet light is designed to help get the job done; with installation solutions that save on labor, quality, and durability that m

Material:

Aluminum

Mounting Procedure:

Under Cabinet: Screws

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

No matter how you hang it, install it, connect it, link it, wire it, or light it - Counter QUICK LED under cabinet lights are designed to help get the job done; with installation solutions that save on labor, quality, and durability that make for a long, m

Safety Listing:

cETLus

SDS class:

LED_Fixture

Short Description:

UNDER CAB LED SCCT 34" - WH

Sloped Ceiling Compatible:

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Weight Lb.:

1.88

Manufactured By:

Nuvo
