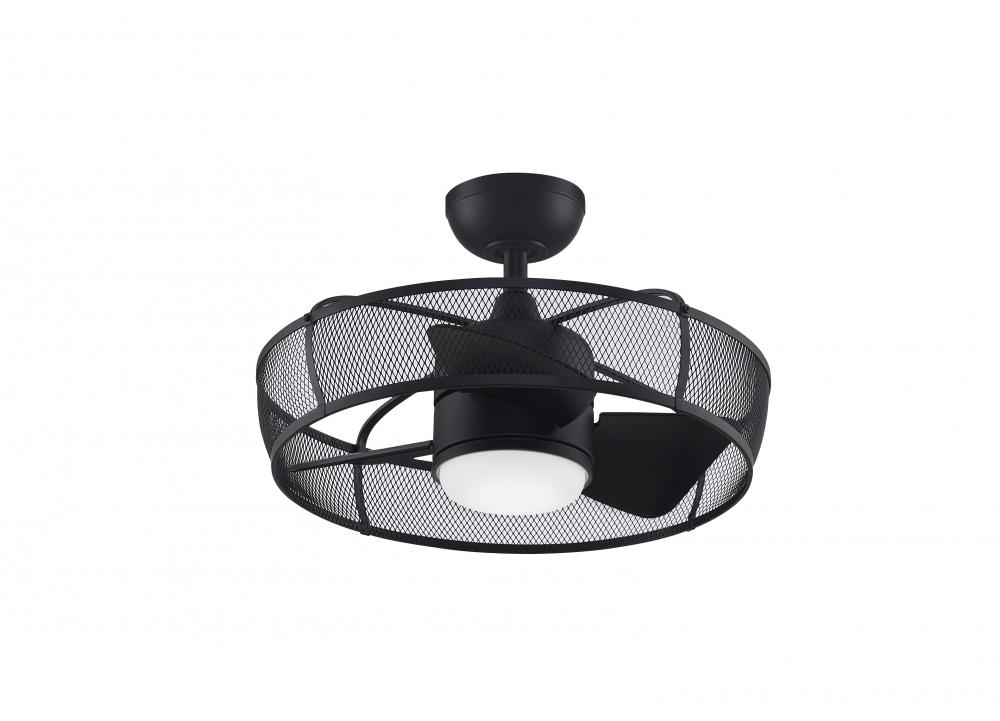

Henry - 20 inch - BL with LED Light (K0UV) by Fanimation FP8519BL

Image may not reflect selected features

No Image
Available

BASE PRICE:

439

/ / 1

($439.98 / 1)

WAS

Call for Price

Item #:

K0UV

Dimensions:

Height: 14.33"

Width: 22.09"

Length: 22.09"

Availability:

Manufacturer availability unavailable.

Energy Information at High Speed

Airflow:

1282 Cubic Feet per Minute

Electricity Rate:

13 Watts (excluded lights)

Airflow Efficiency:

101 Cubic Feet Per Minute Per Watt

Recommended Items

Description

Details

Downloads

Show off your style with Henry by Fanimation. This 20 inch black cage style fan includes an 18 watt LED light kit and opal frosted shade cover, a 4.5 inch downrod, and is close to ceiling compatible. *Damp Rated for indoor or outdoor use *Reversible airflow for multi-season use

Vendor Item #:

FP8519BL

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

Black

Style:

Transitional

Option:

Damp Rated , LED

Voltage:

10-99

Glass Finish or Style:

Frosted , Opal

Lumens:

1101-1600

Number of Blades:

3 Blades

Location Rating:

Damp Rated

Wattage:

Category:

Fan-Uni

Finish:

Black

Option:

Damp

Family:

Henry

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

1282 CFM on High , 3 speed AC motor with reverse switch, fan speed, light control and sleep timer features , Black assembly with black blades and 18 watt LED light kit with bulb included , Limited Lifetime Warranty , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

1282

Air Flow Efficiency:

101

Amperage:

0.11

Blade Finish:

Black

Blade Pitch:

Bulb Type:

18 Watt LED Module

Canopy:

6.3 Dia x 2.56 H

Diameter:

22.09

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

22.09

Light Kit Included:

Yes

Lumens / Light Output:

1400

Material:

Composite

Motor Fan Speed:

Motor RPM:

343

Motor Size:

153 X 15

Motor Type:

Remote Control Included:

TR500

Ship Carton Height:

9.37

Ship Carton Length:

24.41

Ship Carton Width:

24.41

Ship Weight:

20.64

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

15.88

Airflow Efficiency Low:

115

Airflow Efficiency Medium:

116

Avg Airflow Efficiency:

104

Avg CFM Energy:

1105

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Injected

Blade Material:

Composite

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

6.3 Dia

Canopy Height:

2.56 H

Cap Included:

Carton Cubic Feet:

3.23

Cartons Per Unit:

Case Height:

9.37

Case Length:

24.41

Case Quantity:

Case Weight Pounds:

20.64

Case Width:

24.41

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.61

Ceiling To Bottom:

14.33

CFM Low:

437

CFM Medium:

998

Compatible Accessories:

CCK8002BL, DR1-12BL, DR1-18BL, DR1-24BL, DR1-36BL, DR1-48BL, DR1-60BL, DR1-72BL, DR1-CPBL, SCB1-52

Country of Origin:

China

CRI:

Current Draw High:

0.11

Current Draw Low:

0.06

Current Draw Medium:

0.09

Damp Rated:

Yes

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

22.09

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Switch Housing

RPM High (VI):

343

RPM Low (II):

161

RPM Medium (IV):

265

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Watts Per Bulb:

Manufactured By:

Fanimation

Additional Information:

1282 Cfm On High
3 Speed Ac Motor With Reverse Switch, Fan Speed, Light Control And Sleep Timer Features
Black Assembly With Black Blades And 18 Watt Led Light Kit With Bulb Included
Limited Lifetime Warranty
Tr500 Handheld Remote With 23a Battery Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
