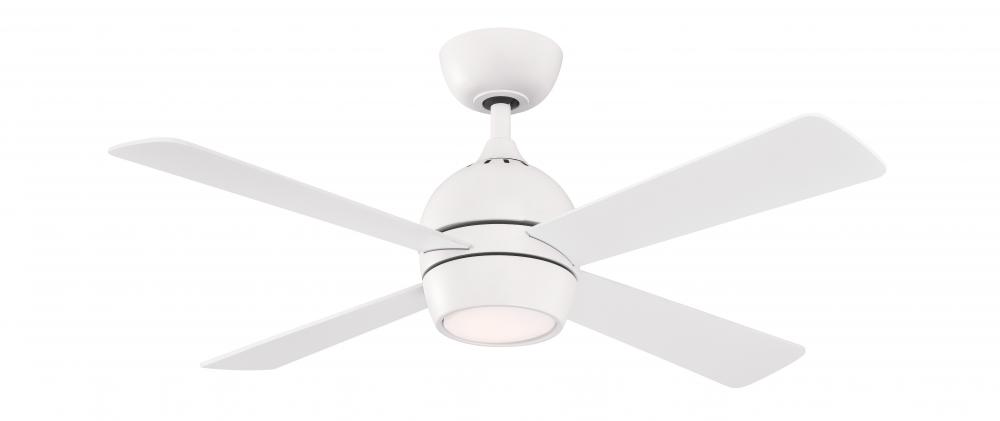

Kwad - 44 Inch - MW with Light (K1VN) by Fanimation FP7644MW

Image may not reflect selected features

No Image
Available

BASE PRICE:

318

/ / 1

($318.98 / 1)

WAS

Call for Price

Item #:

K1VN

Dimensions:

Height: 15.05"

Width: 44.00"

Length: 44.00"

Availability:

Manufacturer availability unavailable.

Energy Information at High Speed

Airflow:

3533 Cubic Feet per Minute

Electricity Rate:

44 Watts (excluded lights)

Airflow Efficiency:

80 Cubic Feet Per Minute Per Watt

Recommended Items

Description

Details

Downloads

Fanimation continues to elevate the style you've come to know with Kwad. This ceiling fan will add the perfect touch to your space with its four blade design and LED light kit. Kwad includes a handheld remote control and is smarthome compatible when combined with the optional WiFi receiver. *Dry Rated for indoor use *Compatible with most smart home devices (required control sold separately) *Reversible airflow for multi-season use

Vendor Item #:

FP7644MW

Category:

Fans

Subcategory:

Ceiling Fans with Light

Finish:

White

Style:

Traditional

Option:

Dry Rated , LED

Voltage:

10-99

Glass Finish or Style:

Frosted , Opal

Lumens:

1101-1600

Number of Blades:

4 Blades

Location Rating:

Dry Rated

Wattage:

18w

Category:

Fan-Uni

Finish:

Matte White

Option:

Dry Rated

Family:

Kwad 44

Glass:

Opal Frosted

Voltage:

120 V

Number of Bulbs:

1 Bulbs

Additional Info:

3 speed AC motor with reverse switch - fan speed, light and sleep timer functions , 3533 CFM on High , Limited Lifetime Warranty , Set of 4 blades with multiple finish options and 18 watt LED light kit included , TR500 handheld remote with 23A battery included , WiFi or bluetooth compatible (required controls sold separately)

Air Flow CFM:

3533

Air Flow Efficiency:

Amperage:

0.37

Blade Finish:

Matte White

Blade Pitch:

Bulb Type:

18 Watt LED Module

Canopy:

6.5 Dia x 2.58 H

Diameter:

8.4

Down Rod Included:

4.5

Electricity Used:

Harmonized Codes:

8414.51.3000

Kelvin:

3000

Length:

Light Kit Included:

Yes

Lumens / Light Output:

1500

Material:

Wood

Motor Fan Speed:

Motor RPM:

195

Motor Size:

153 X 13

Motor Type:

Remote Control Included:

TR500

Ship Carton Height:

10.12

Ship Carton Length:

25.91

Ship Carton Width:

10.87

Ship Weight:

16.69

Sold By:

Each

Warranty:

Limited Lifetime

Weight:

14.77

Airflow Efficiency Low:

147

Airflow Efficiency Medium:

105

Avg Airflow Efficiency:

Avg CFM Energy:

2579

Avg Energy Use Watts:

Avg Estimated Yearly Energy Cost:

Avg Estimated Yearly Energy Cost on HIGH:

Blade Finish Method:

Paper Overlay

Blade Material:

Wood

Blade Reversible:

Blade Sweep:

Bulb Base:

Connector Pin

Bulb CRI:

Bulb Wattage:

Canopy Diameter:

6.5 Dia

Canopy Height:

2.58 H

Cap Included:

Carton Cubic Feet:

1.65

Cartons Per Unit:

Case Height:

10.12

Case Length:

25.91

Case Quantity:

Case Weight Pounds:

16.69

Case Width:

10.87

CEC Uploaded:

Yes

Ceiling To Blade Edge:

12.27

Ceiling To Bottom:

15.05

Ceiling to Bottom No LK:

14.2

CFM Low:

1497

CFM Medium:

2633

Compatible Accessories:

CCK8002MW, DR1-12MW, DR1-18MW, DR1-24MW, DR1-36MW, DR1-48MW, DR1-60MW, DR1-72MW, DR1-CPMW, SCB1-52

Compatible Controls:

BTCR9, BTR9, CRL4WH, WFR50

Compatible Wall Controls:

CWRL4LA, CWRL4WH, WC2WH, WR501WH

Country of Origin:

China

CRI:

Current Draw High:

0.37

Current Draw Low:

0.18

Current Draw Medium:

0.28

DOE Classification:

LSSD

DOE-FTC Uploaded:

Yes

DOEFTC Uploaded:

Yes

Downrod Length:

4.5

Dry Rated:

Yes

Exempt from DOE Procedure:

Fan Energy Star:

Housing Diameter:

8.4

Included Control:

TR500

Included Control Type:

Handheld

Leadwire:

Light Kit Energy Star:

Max Ceiling Slope:

Max Watt:

Maximum Slope Degree:

Motor Finish Method Type:

Painted

Motor Reversible:

Yes

Number of Blades:

Number Of Speeds:

Regulated Product:

Yes

Reverse Switch Location:

Motor Housing

RPM High (VI):

195

RPM Low (II):

RPM Medium (IV):

140

Safety Rating:

UL Approved, cUL Approved

Voltage Cycles:

60 hz

Watts Low:

Watts Medium:

Watts Per Bulb:

Manufactured By:

Fanimation

Additional Information:

3 Speed Ac Motor With Reverse Switch - Fan Speed, Light And Sleep Timer Functions
3533 Cfm On High
Limited Lifetime Warranty
Set Of 4 Blades With Multiple Finish Options And 18 Watt Led Light Kit Included
Tr500 Handheld Remote With 23a Battery Included
Wifi Or Bluetooth Compatible (required Controls Sold Separately)
